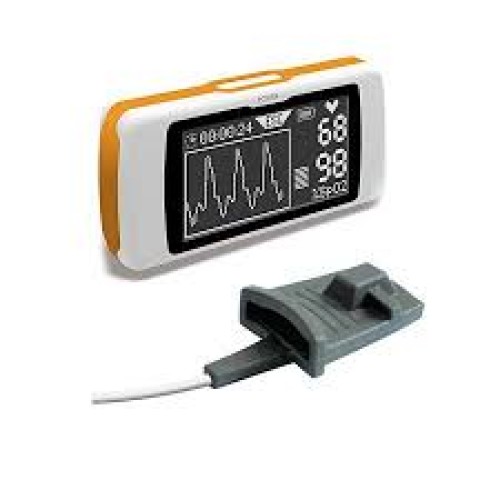

Oximeter Spirodoc

Spirodoc is the first 3D Oximeter, with a touch screen display, incorporating a triaxial motion sensor to correlate the saturation level (%Sp02) with physical activity
(walk counter, movement analysis and VMU).

• It has 3D accelerometer with motion analysis that performs the 6MWT with new 02 Gap Index.
• It provides simple, clear Sp02 and Pulse Rate measurements with the plethysmographic curve.
• During the single six-minute walk test (6MWT), Spirodoc estimates the level of oxygen therapy required by the patient.
• Innovative and essential in pneumology, cardiology and rehabilitation etc.

Spirodoc carries out sleep desaturation studies and memorizes events as well as body position.

• Display: LCD Backlit Touch screen Display: Resolution: 128x64 pixels
• Power supply: Lithium ion 3.7V, 1100mA rechargeable battery with 30 hours measurement back-up
• Data transmission: USB 2.0 (Bluetooth® optlonal)
• Accelerometer: Triaxial ± 2g, 400Hz sampling
• Dimensions and weight: central unit 101x48x16mm, 99g

Oximeter specifications:

• Sp02 range: 0-100%
• Sp02 accuracy: ±2% (50-100% Sp02)
• Pulse rate range: 20-254BPM
• Heart rate accuracy: ±2BPM or 2%, whichever is greater
• Memory capacity: up to 300 hours oximetry

Oximeter measured parameters:
Sp02 [Baseline, Min, Max, Mean), Pulse rate [Baseline,
Min, Max, Mean), T90% [Sp02<90%], T89% [Sp02<89%], T88% [Sp02<88%], T5% [6Sp02>5%], 6Jndex [12s), Sp02
Events, Pulse rate events [Bradycardia, Tachycardia]. Step
counter, Movement [VMU], Recording time, Analysis time

Sleep test measured parameters:
%SpO 2BASE , BPM BASE , ODI, Mean Dur .
Desat ., TotDesaturat ., Longest
Desat ., Desatur . Peak, BPM Index,
Mean Desaturat ., Mean Drop, Max
Drop , BPM Variation, NOD4%,
NOD89 %, NOD90%, t.NOD4%,
t.NOD89 %, t.

6MWT measured parameters:
%SPO2, BPM, Tbaseline , Twalking ,
Trecovery , Distance, Δ SPO2,
T4% Δ SPO2 , Predicted, %Predicted,
AUC/Distance , Dyspnea, Dyspnea,
Fatigue , Diastolic, Systolic, Steps,
VMU , O2 GAP, O2

Warranty: 1 year

Manufacturer: MIR, Italy.

Each machine comes with:

- Carrying case.
- USB cable.
